Asset Tracker

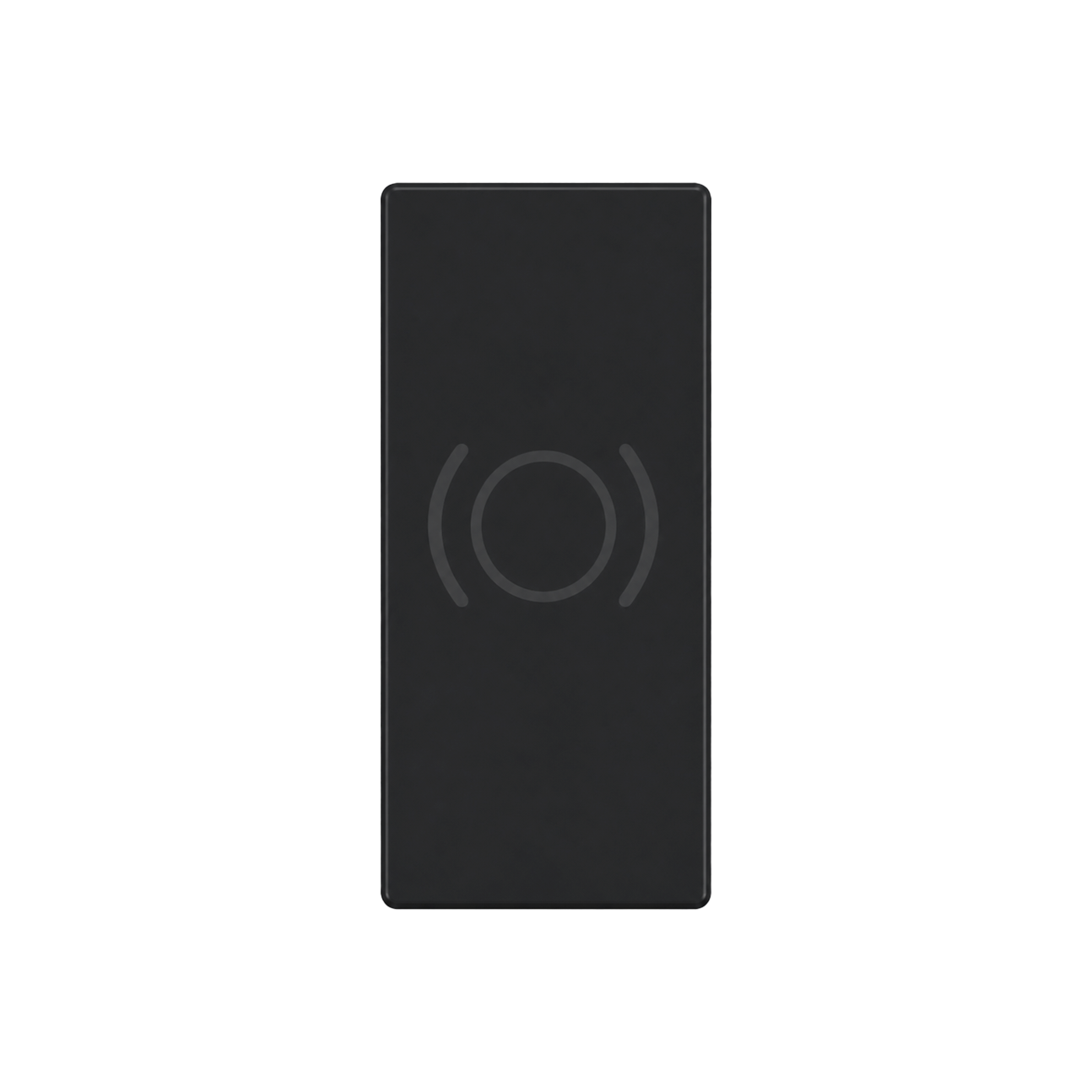

TrackMini Plus
An ultra-thin LTE-M/NB-IoT Asset Tracker with integrated eSIM, GPS tracking, and accelerometer – in a compact format, weighing only 25g, with multi-year battery life and IP65 protection for global use.
Asset Tracker
What makes the TrackMini Plus special
Ultra-thin design
At just 7.7 mm thin and 25 g, it's ideal for discreet use on packages, shipments, and valuables worldwide.
Integrated eSIM & LTE-M/NB-IoT
Worldwide connectivity without a SIM card – ready for immediate use in LTE-M and NB-IoT networks.
Precise GPS tracking
Reliable positioning via Nestwave-assisted low-power GPS technology with integrated antennas.
Multi-year battery life
Optimized for long-lasting, maintenance-free operation – ideal for reusable tracking applications.
NFC Activation
Easy activation and identification via a secure NFC smartphone app without additional hardware.
IP65-rated Casing
Splash-proof and robust for reliable use in demanding logistics environments.
Complete Feature Set
The pyliot app is a flexible real-time tracking solution for monitoring assets, shipments and locations. With custom dashboards, configurable alerts and data export, the platform can be adapted precisely to your operational requirements.
Dashboard Visualisations
Data is displayed in clear, large-format elements such as graphs, tables and statistics. Thanks to drag-and-drop functionality, each element can be quickly adapted to your needs. All dashboards are also accessible from mobile devices.
Easy Device and Data Management
Verwalten Sie ihre Geräteflotte direkt über die Plattform. Batteriestatus, Ladezustand sowie Aufzeichnungs- und Übertragungsintervalle lassen sich einfach einsehen und anpassen. Alle Datenpunkte sind als CSV exportierbar und nach Standort, Gerät oder Sensorwert filterbar.
Data is displayed in clear, large-format elements such as graphs, tables and statistics. Thanks to drag-and-drop functionality, each element can be quickly adapted to your needs. All dashboards are also accessible from mobile devices.
Configure Alerts
Alarme lassen sich schnell einrichten und mit verantwortlichen Personen verknüpfen, die per Browser, E-Mail oder SMS benachrichtigt werden. Verfügbar für Schwellwerte, Geozonen, Batteriezustand und unerwartete Nutzung.
Specifications
Product Specifications
The TrackMini Plus is an ultra-thin LTE-M/NB-IoT asset tracker for reliable global location tracking and shipment monitoring.
Thanks to its integrated eSIM, precise GPS positioning, a 3-axis accelerometer, multi-year battery life, and a splash-proof casing (IP65), it is versatile for asset tracking, logistics, and shipment monitoring in global use. With a height of only 7.7 mm and weighing 25 g, it can be discreetly attached to packages, shipments, and assets.
Connectivity 4G LTE-M, NB-IoT
Positioning GPS (Nestwave assisted low power)
SIM eSIM MFF2
Size 84.6 x 36.6 x 7.7 mm (25g)
IP Protection Class IP65
Sensors 3-axis accelerometer,
Temperature and humidity sensor, pressure and shock sensor
Certifications CE, FCC
Mounting Flexible (e.g., integrable into packages & containers)
01
Asset Tracking
Track the location of your assets worldwide in real-time. Detect unauthorized movements immediately and respond effectively. Thanks to its ultra-slim design, the TrackMini Plus can be discreetly attached to any asset.
02
Cold Chain Monitoring & Pharma Logistics
Monitor temperature-sensitive shipments seamlessly from dispatch to arrival. Reduce losses and deviations throughout the entire cold chain and meet regulatory requirements.
03
Package Tracking & Shipment Management
Track packages and shipments seamlessly throughout their entire transport route. Increase transparency in your supply chain and reduce losses due to misdirected or delayed shipments.
