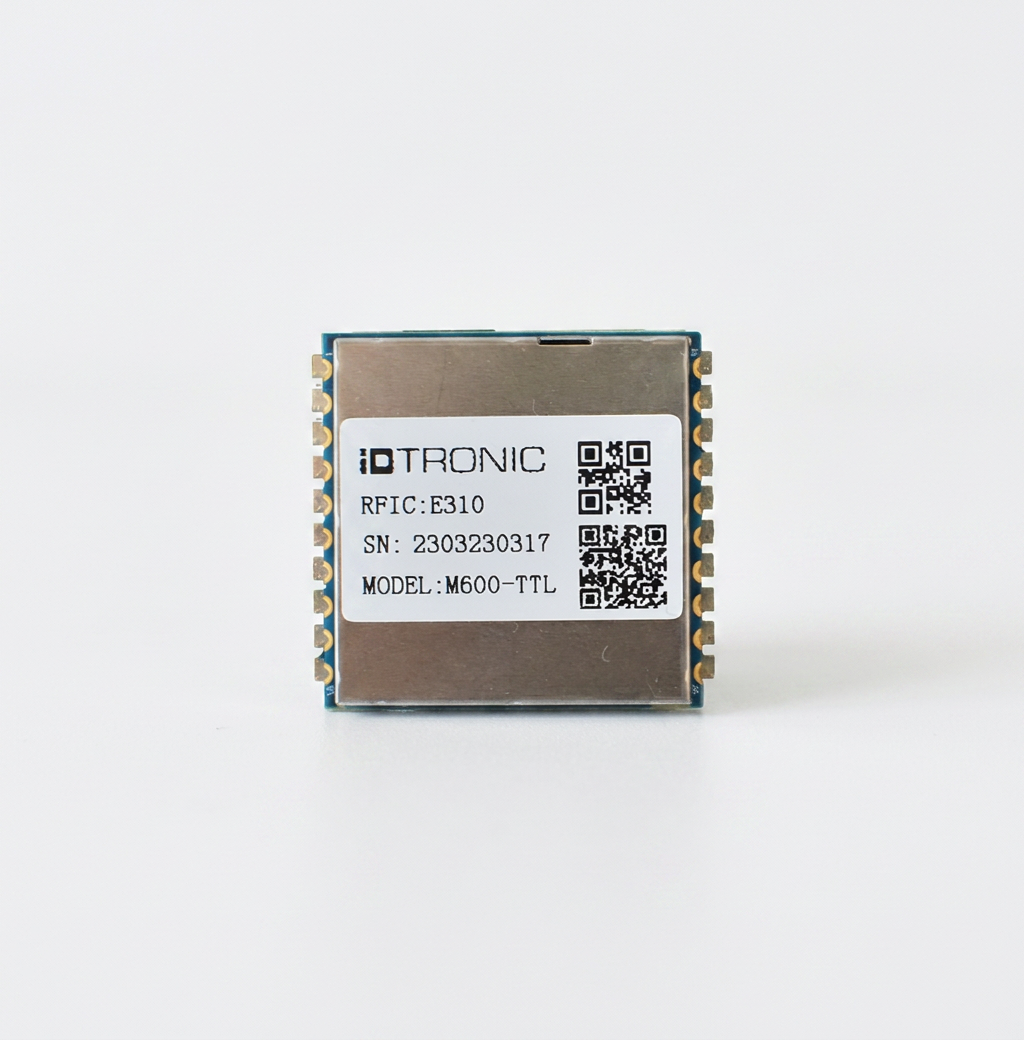

Embedded SMT Module UHF

M600

Powerful UHF SMT module for industrial RFID systems. The M600 enables reliable long-range performance, high read speeds, and flexible integration thanks to Impinj E310/E510/E710 chipsets and up to 33 dBm RF power.

Request a quote

Highlights

Benefits

High-End Impinj Platform

Based on the latest Impinj E310 / E510 / E710 generation, the M600 offers a scalable performance architecture – from short-range to long-range inventory applications.

Industrial & Long-Range Optimized

Up to 33 dBm RF power, high sensitivity (up to –87 dBm), and read rates of up to 1,000 tags/s enable stable performance in demanding industrial and logistics environments.

Development & SDK Support

Extensive SDK with support for Windows, Linux, and Android, including demo software, facilitates quick integration into embedded, controller, and industrial applications.

No items found.

Spezifikationen

Produkt Spezifikationen

The EMBEDDED SMT MODULE UHF M600 is a powerful UHF RFID module for demanding OEM and embedded applications. Based on the current Impinj generation (E310 / E510 / E710), it offers up to 33 dBm RF power and high read rates for industrial, logistics, and long-range RFID systems.

RFID SPECIFICATION

Operating frequency 840 to 960 MHz,
USA 902 to 928 MHz (FCC), EU 865 to 868 MHz (ETSI)

RF transmit power +5 to +33 dBm, adjustable in 1 dB steps

Read range > 10 meters

RF Impedance 50 Ω

ELECTRICAL SPECIFICATIONS

Power supply 3.6 to 5 VDC
850 mA at +30 dBm transmit power
50 mA in standby
50 µA in power-down mode

Connections Solder connections

Communication interface UART TTL port

Baud rate 9600 to 921600 bit/s, 115200 bit/s standard

GPIO 2 inputs TTL level:
Logic Low < 0.8 V, minimum 0 V
Logic High > 2 V, Maximum 3.3 V

2 TTL-level outputs:
Logic Low maximum 0.4 V
Logic High Minimum 2.9 V, Maximum 3.3 V

IO maximum output current per port 5 mA

MECHANICAL SPECIFICATIONS

Dimensions 28 × 28 × 4 mm

Weight 10 g

Material PCB FR4

Shielding frame Nickel-Copper

Cover Stainless steel

ENVIRONMENTAL CONDITIONS

Operating temperature -20 °C to +55 °C

Storage temperature -40 °C to +85 °C

Humidity up to 95%, non-condensing

SDK INFORMATION

Supported operating systems Windows, Linux, Android

Supported programming languages C, C#/.NET, Java

Demo software Windows

SUPPORTED STANDARDS / TAGS

ISO standard ISO 18000-63 (EPC Class 1 Gen 2)

Tag buffer ≥ 1000 tags at 12 bytes EPC size

Download datasheet

Download Product Guide

Product not suitable?

‍

Standard not enough? We develop individual RFID solutions – tailored to your application, interface, and system architecture. We support your project from concept to series production.

‍
