Embedded SMT Module LEGIC

M800

Compact LEGIC RFID module for secure identification applications in access control, vending machines, and embedded systems. Supports LEGIC Prime and Advant, as well as common HF standards for flexible integrations. (LEGIC Prime, Advant, ISO 14443A/B, and ISO 15693 are supported.)

Request a quote

Highlights

Benefits

LEGIC Security Integration

Supports LEGIC Prime and LEGIC Advant, making it ideal for secure access and identification systems.

Compact SMT Design

The SMT design allows for direct integration onto circuit boards and is ideal for industrial devices or terminals.

Multi-Standard HF Support

In addition to LEGIC, ISO 14443 and ISO 15693 transponders are also supported, enabling versatile RFID applications.

No items found.

Spezifikationen

Produkt Spezifikationen

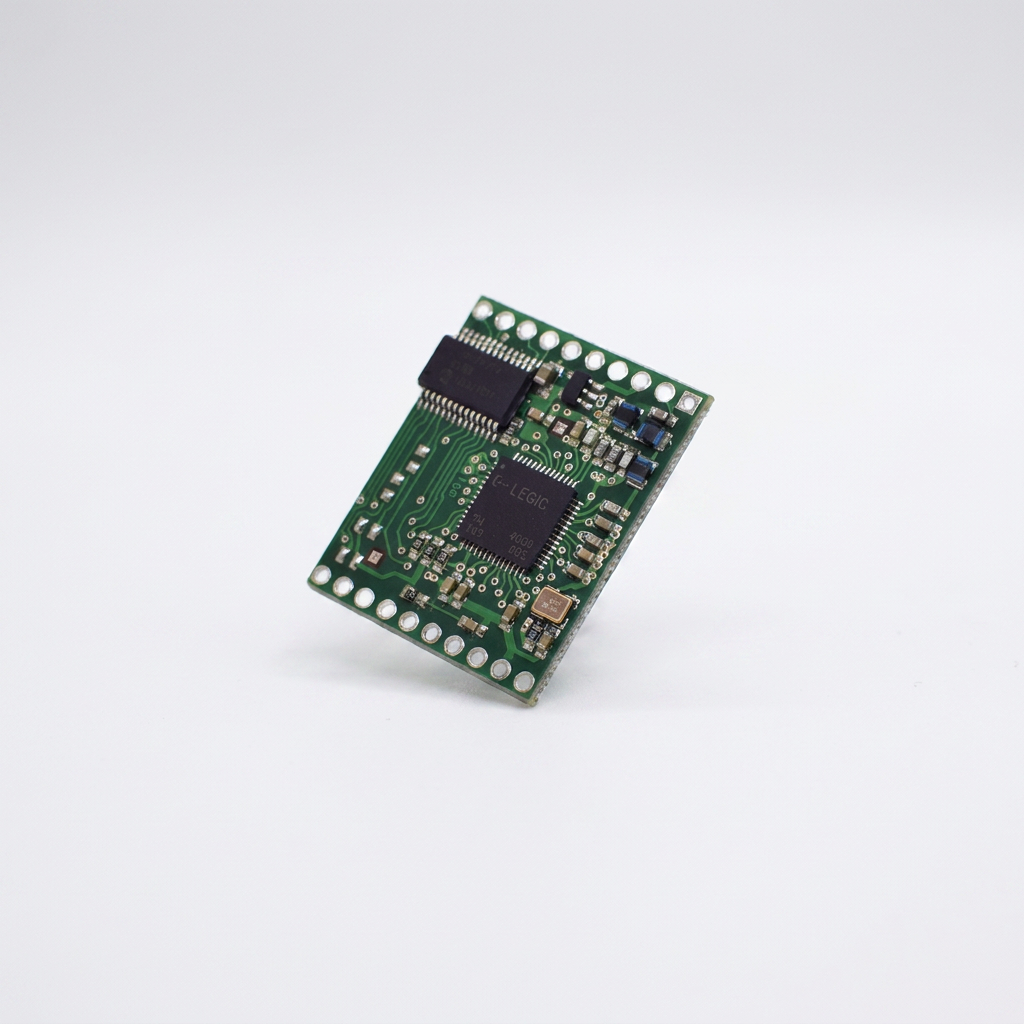

The EMBEDDED SMT MODULE LEGIC M800 is a compact HF RFID module for embedded systems. It supports LEGIC Prime, LEGIC Advant, as well as ISO 14443A/B and ISO 15693 and is ideal for access control and device integration.

ELECTRICAL SPECIFICATIONS

Power Supply 5 VDC (± 5 % regulated)

Operating range up to 8 cm
(depending on tag and antenna type)

Integrated antenna present

Interface TTL / USB

MECHANICAL SPECIFICATIONS

Dimensions 31 × 26 × 3 mm

Weight 13 g (maximum)

ENVIRONMENTAL CONDITIONS

Operating temperature -20 °C to +70 °C

SDK INFORMATION

Supported operating systems
(via FTDI USB VCP driver) Windows Server 2008 / 2012 R2 (x64)
Windows 7, 8, 8.1, 10
Windows RT
Windows CE (CE 4.2–5.2, 6.0 / 7.0, 2013)
Linux
macOS
Android

APPLICABLE STANDARDS

EMC (EMC) EN 301489-1:2012-04 (V1.9.21)
EN 301489-3:2013-12 (V1.6.1)

Radio Regulation EN 300330-1:2015-08 (V1.8.1)
EN 300330-2:2015-08 (V1.6.1)

Safety EN 60950-1:2014-08
EN 62369-1:2010-03
EN 50364:2010-11

RoHS 2 EC Directive 2011/65/EU

Certificates FCC, CE

SUPPORTED STANDARDS / TAGS

ISO 14443 A Read/Write:
MIFARE® Classic Mini / 1K / 4K
MIFARE Ultralight®,
MIFARE Ultralight® C,
MIFARE® DESFire® EV1,
MIFARE® Smart MX,
MIFARE® Plus S / X,
MIFARE® Pro X, NTAG21x

Read UID only:
UID readout of all other ISO14443A RFID tags

ISO 14443 B SR14K, SRI4K, AT88RF020,
66CL160S, SR176

ISO 15693 EM4135, EM4035,
EM4x33, EM4x35,
I-Code SLI / SLIX
M24LR16/64, TI Tag-it HF-I
SRF55Vxx (medium range)

LEGIC RF Standard Full Read/Write:
LEGIC Advant, LEGIC Prime
