Embedded Module HF / NFC M890

M890

Compact HF and NFC embedded module for reliable RFID integrations. The M890 supports numerous 13.56 MHz standards and enables fast and stable transponder communication.

Request a quote

Highlights

Benefits

Highest UHF Performance

Latest Impinj chipsets enable high read speeds and stable ranges – even in dense tag environments.

Wide RFID Compatibility

Supports common 13.56 MHz standards such as ISO 14443, ISO 15693, and NFC for flexible RFID applications.

Flexible Interfaces

Available with TTL, USB, RS232, RS485, and PC/SC for easy integration into various systems.

No items found.

Spezifikationen

Produkt Spezifikationen

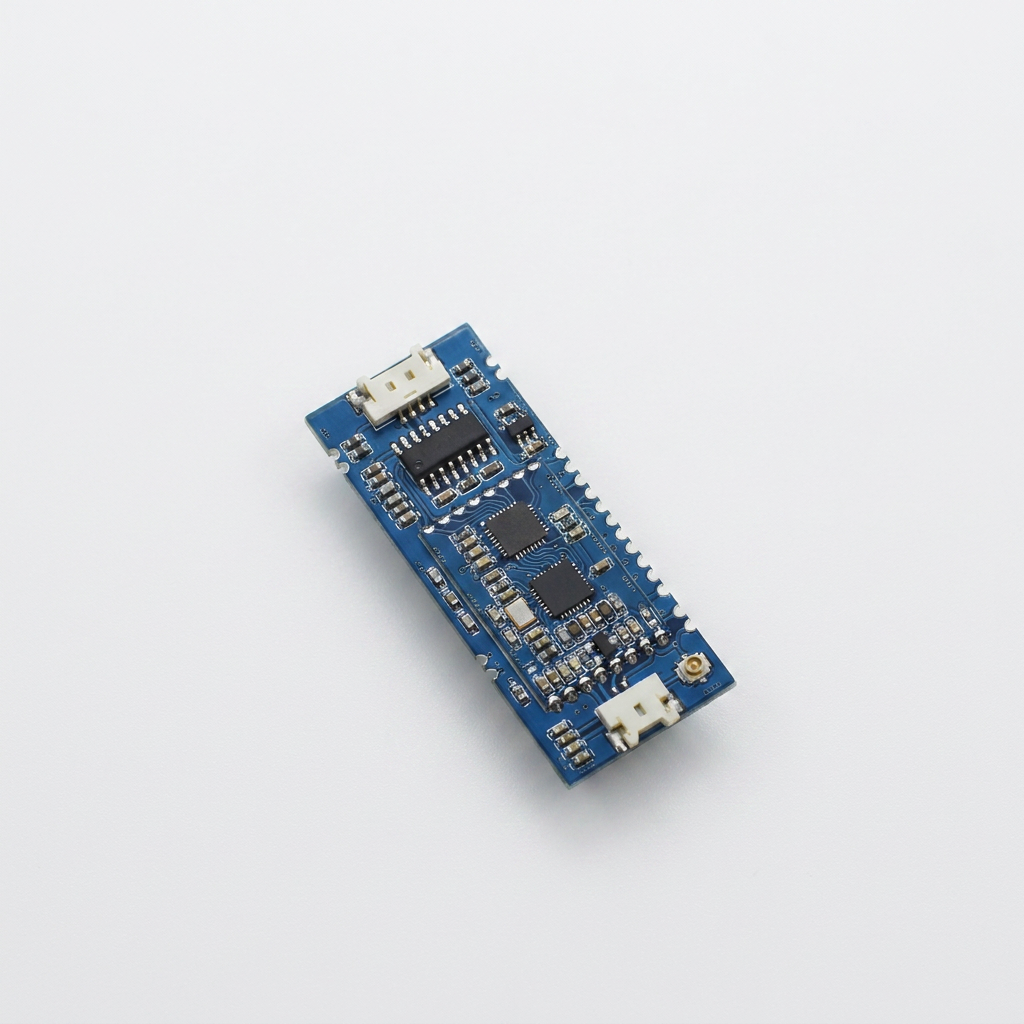

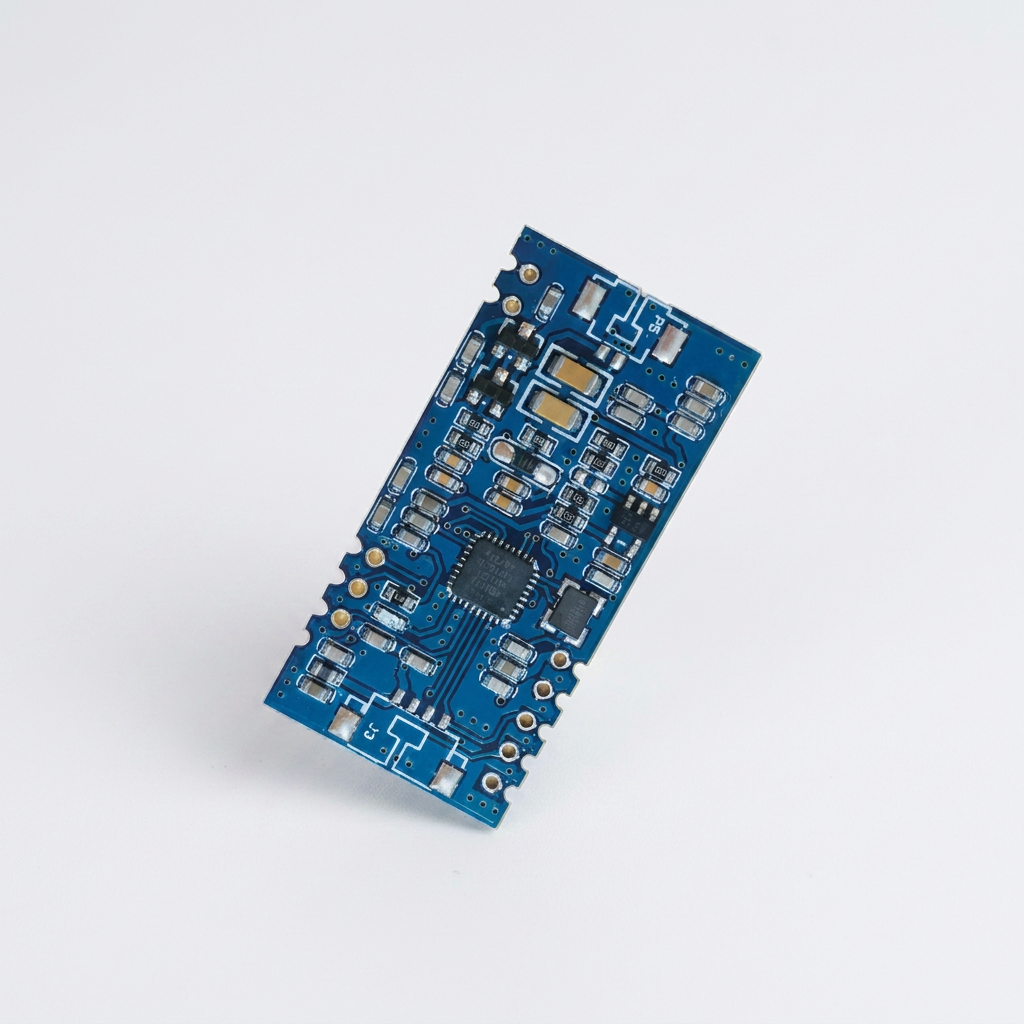

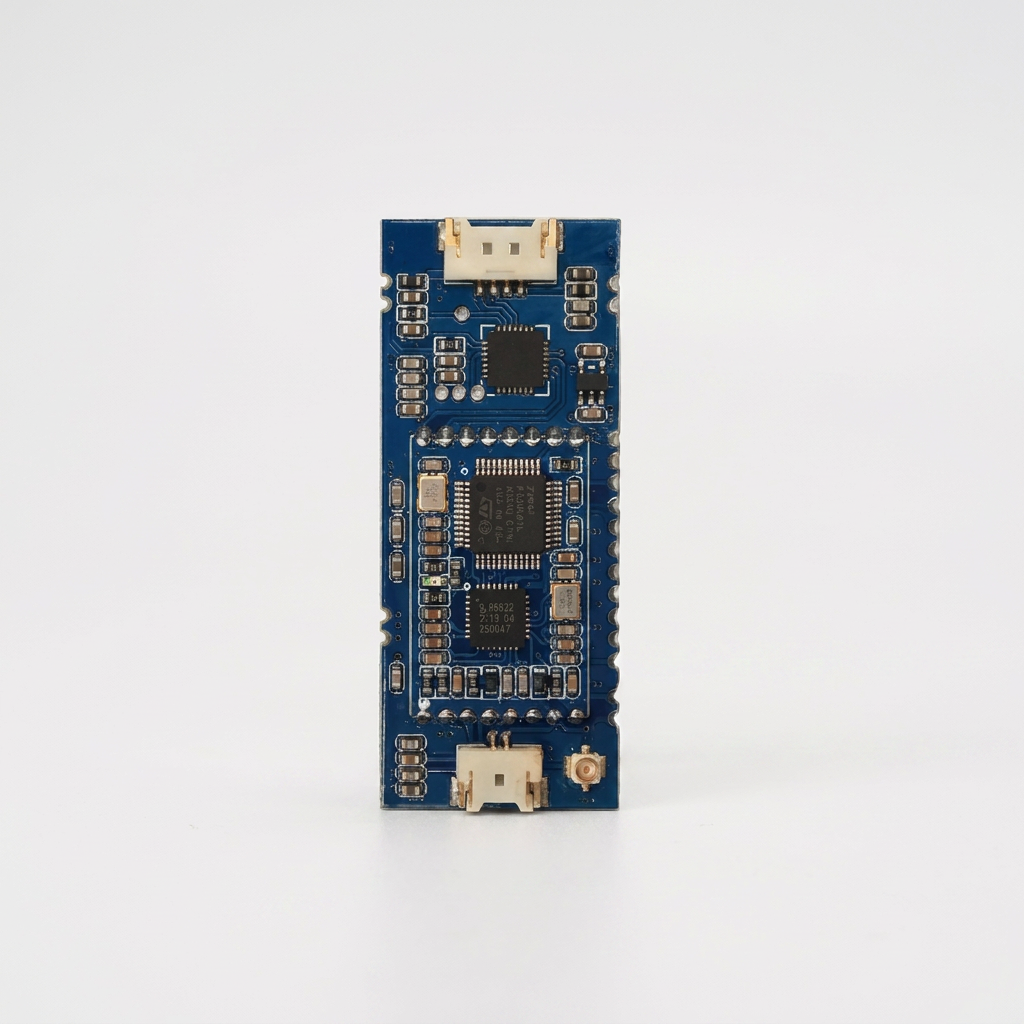

The EMBEDDED MODULE HF NFC M890 is a powerful HF RFID module for compact integrations into industrial devices, terminals, or access systems. Thanks to modern HF transceiver technology, the module supports numerous 13.56 MHz RFID standards and enables reliable read and write operations in various applications.

ELECTRICAL SPECIFICATIONS

Power Supply 3.3 ~ 5 VDC

Power Consumption< 100 mA, Standby current
< 1 mA (low-power mode)

Operating frequency 13,56 MHz

Read range up to 8 cm*

Antenna external

Baud rate 9600 to 115200 bit/s

Antenna connector U.FL

Interface TTL, USB VCP, USB HID,
RS232/485, PC/SC

PCB Connections Solder pads (suitable for SMD production)

ENVIRONMENTAL CONDITIONS

Operating temperature -20 °C to +80 °C

Storage temperature -40 °C to +85 °C

Humidity up to 95%, non-condensing

MTBF 200,000 h

SDK INFORMATION

Supported Operating Systems
via Silabs USB VCP driver Windows 7/8/8.1/10,
Windows Server 2003/7/8/8.1,
Windows 2000,
Windows CE (5.0, 6.0),
macOS,
Linux (4.x.x., 2.6.x),
Android 4.2

Supported Programming Languages C++, binary command protocol

Demo Software Windows

APPLICABLE STANDARDS

EMC (EMC)
EN 301489-1:2012-04 (V1.9.21)
EN 301489-3:2013-12 (V1.6.1)

Radio Regulation EN 300330-1:2015-08 (V1.8.1)
EN 300330-2:2015-08 (V1.6.1)

Safety EN 60950-1:2014-08
EN 62369-1:2010-03
EN 50364:2010-11

RED 2014/53/EU

RoHS 22011/65/EU

REACH 1907/2006

Certificates FCC, CE, IC
