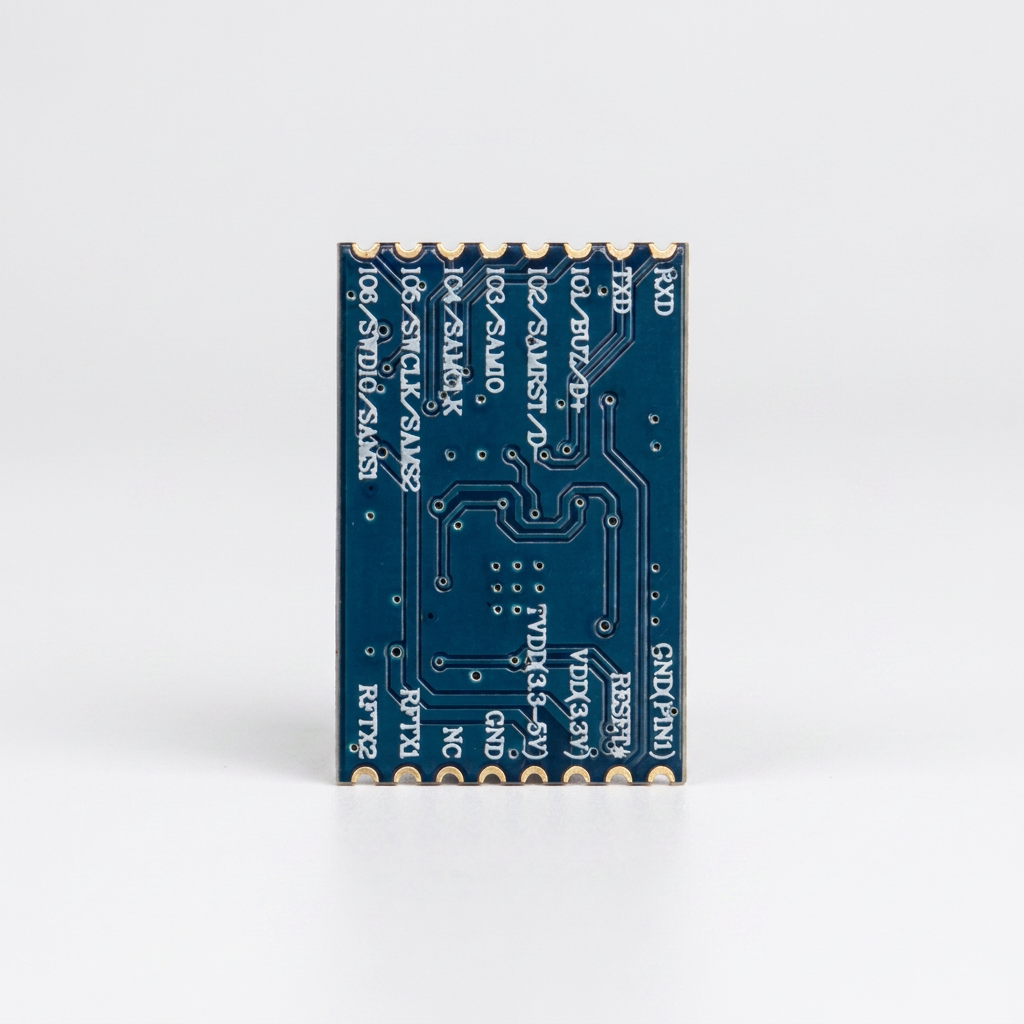

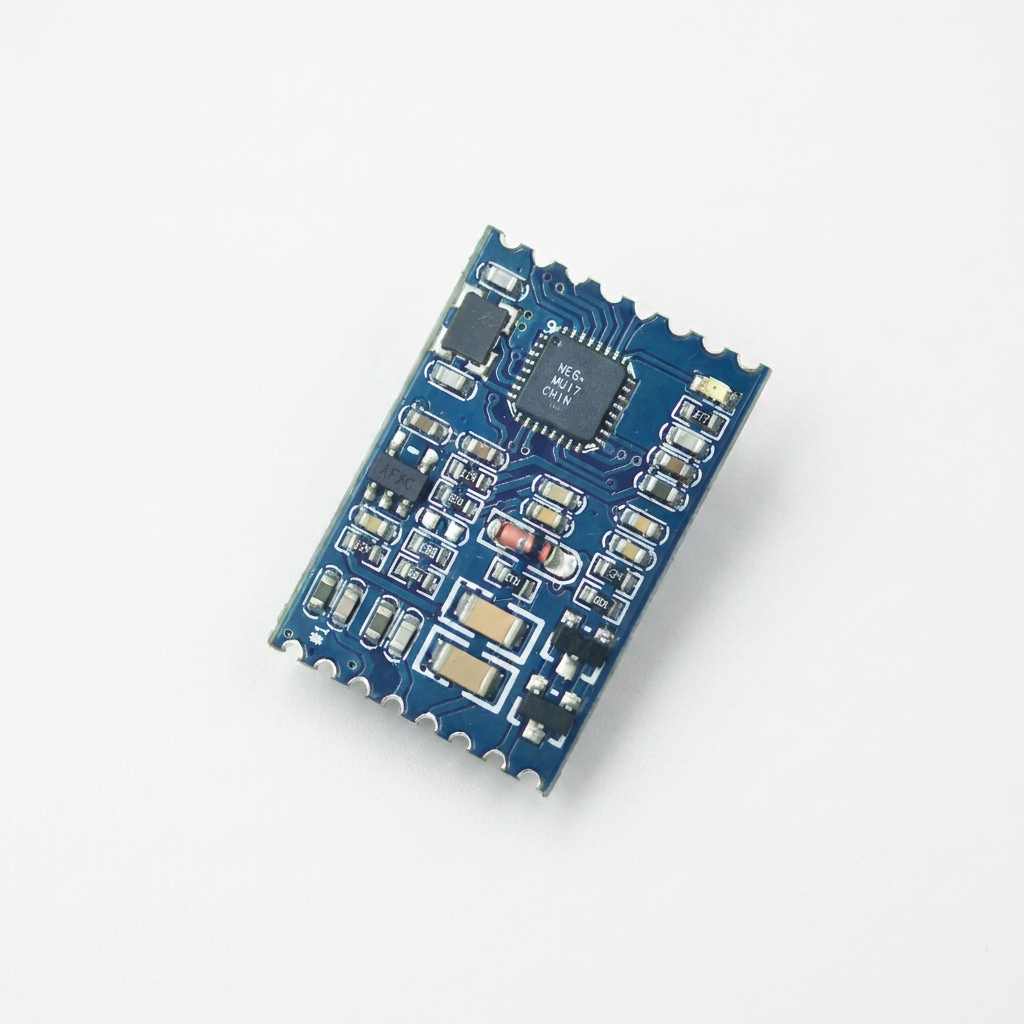

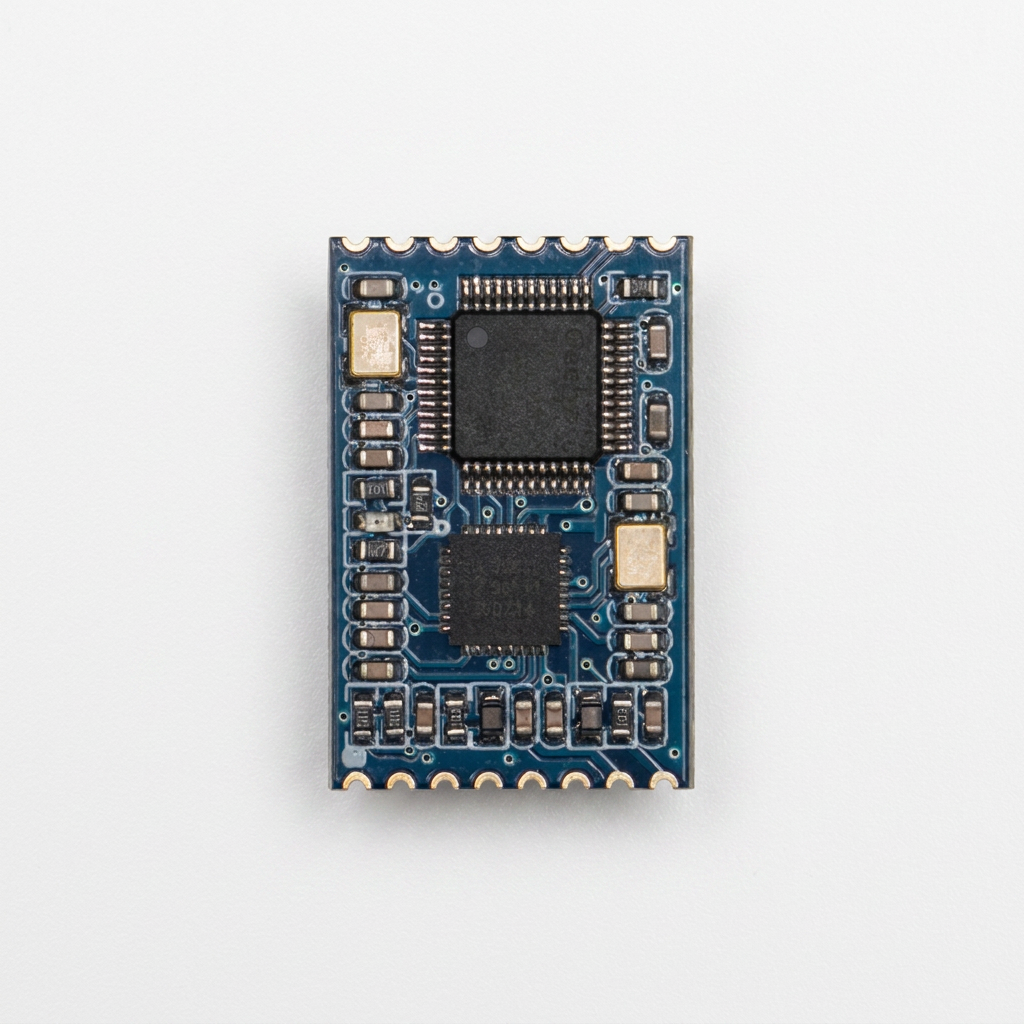

Embedded SMT Module HF / NFC

M900

Compact HF / NFC embedded module for reliable 13.56 MHz RFID integrations. The M900 enables fast reading and writing of common transponders and is ideal for SMT-based mass production and mobile devices.

Request a quote

Highlights

Benefits

Compact SMT Design

Ultra-small HF/NFC module for direct SMT integration on PCBs – ideal for space-saving RFID and NFC applications.

Broad Standard Support

Supports common HF and NFC standards such as ISO 14443, ISO 15693, and NFC for flexible identification solutions.

Easy System Integration

TTL interface, external antenna, and SDK enable quick integration into embedded systems and devices.

No items found.

Spezifikationen

Produkt Spezifikationen

The EMBEDDED SMT MODULE HF / NFC M900 is a compact 13.56 MHz RFID module for embedded integrations with high demands on efficiency and flexibility. It supports common HF and NFC standards and is ideal for SMT-based mass production as well as for integration into mobile devices and electronic systems.

ELECTRICAL SPECIFICATIONS

Power Supply µC 3.3 V, RFID IC 3.3 ~ 5 VDC

Power Consumption< 100 mA, Standby current
< 1 mA (low-power mode)

Operating frequency 13.56 MHz

Read range up to 10 cm

Baud rate 9600 to 115200 bit/s

Antenna connection Solder pads

Interface TTL, 3.3 V output level,
Input not 5 V tolerant

PCB connections Solder pads, suitable for SMD production

Outputs 1 Buzzer, 2 LEDs,
3 special outputs, max. 25 mA per output,
max. 80 mA total

MECHANICAL SPECIFICATIONS

Material FR-4, blue

Mounting option Soldering

ENVIRONMENTAL CONDITIONS

Operating temperature -20 °C to +80 °C

Storage temperature -40 °C to +85 °C

Humidity up to 95%, non-condensing

MTBF 200,000 h

SDK INFORMATION

Supported Operating Systems Windows 7, 8, 8.1, 10

Supported Programming Languages C++, binary command protocol

Demo Software Windows

APPLICABLE STANDARDS

EMC (EMC) EN 301489-1:2012-04 (V1.9.21)
EN 301489-3:2013-12 (V1.6.1)

Radio Regulation EN 300330-1:2015-08 (V1.8.1)
EN 300330-2:2015-08 (V1.6.1)

Safety EN 60950-1:2014-08
EN 62369-1:2010-03EN 50364:2010-11

RED 2014/53/EU

RoHS 22011/65/EU

REACH 1907/2006

Certificates FCC, CE, IC

Download datasheet

Request SDK
