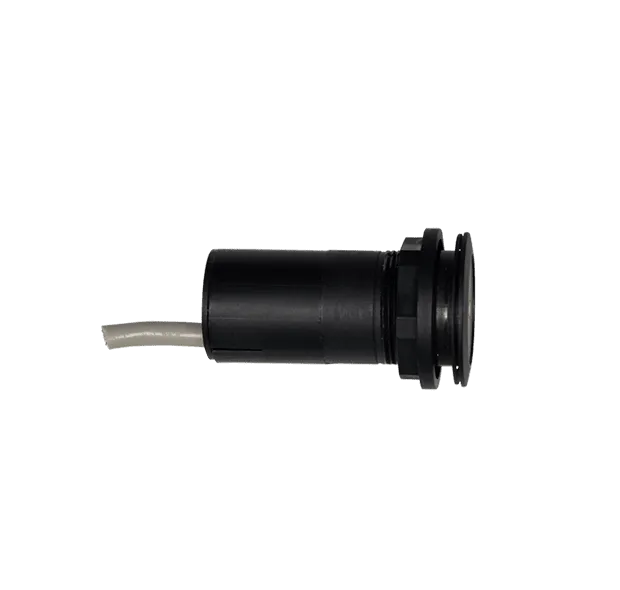

HF | NFC Panel Reader NEO
Short Ranges
HF | NFC Panel Reader NEO
The HF | NFC Panel Reader NEO is a compact RFID panel reader with an integrated keyfob holder for integration into control panels, machines, and electrical cabinets. With 13.56 MHz, an integrated antenna, IP65 protection, and interfaces like USB, RS232, PC/SC, and HID, it is ideal for access control and industrial automation.
Highlights
Compact HF/NFC Identification for Machines and Electrical Cabinets
Panel Integration for Industrial Applications
The reader is designed for integration into control panels and electrical cabinets and is particularly suitable for machine access, Industry 4.0, and automation applications.
HF/NFC Compatibility
Supports ISO 14443A/B, ISO 15693, ISO 18000-3M3 / EPC HF Gen2, as well as HID iClass for versatile RFID and NFC applications.
Integrated Antenna
The integrated antenna allows reading distances of up to 2 cm and provides a compact, installation-friendly solution for close-range applications.
Flexible Interfaces
USB, RS232, PC/SC, and HID enable easy integration into existing control, IT, and access systems.
Robust design with IP65 rating
The IP65 protection class, robust ABS housing, and a temperature range of -20 °C to +70 °C support use in demanding industrial environments.
SDK for easy development
The SDK, including documentation, command protocols, and Windows demo software, supports the development of controller-, Linux-, and Windows-based applications.
Specifications
Product Specifications
The HF | NFC Panel Reader NEO is a compact RFID panel reader for industrial applications, machine access, and automation. Thanks to its integrated keyfob holder, the device is particularly suitable for integration into control panels, operator panels, and control cabinets.
With a 13.56 MHz operating frequency, integrated antenna, IP65 protection class, and interfaces such as USB, RS232, PC/SC, and HID, the Panel Reader NEO enables reliable HF/NFC identification in industrial close-range applications. The available SDK supports easy integration into controller-, Linux-, and Windows-based applications.
ELECTRICAL SPECIFICATIONS
Read range up to 2 cm
Operating frequency 13.56 MHz
Power supply 5 Vdc via USB or RS232
Power Consumption 100 mA, standby current < 1 mA in low power mode
