Stick Reader EVO
MPR Series
Stick Reader EVO
Compact, mobile, and ready to use – the EVO supports companies with secure identification and authentication processes.
Highlights
What makes the EVO special
Data Output
In addition to UID formats, defined areas of the user memory can also be read.
Reliable Reading
Enables reliable capture of cards and tags at close proximity up to 3 cm.
Cards & Tags
Captures RFID cards and tags quickly and reliably for secure identification processes.
Mobile deployment
The lightweight and modern design is ideal for flexible mobile use.
Instantly ready
Simply plug in and use immediately, no complex installation required.
Easy to integrate
Integrates flexibly into existing applications and system environments.
Specifications
Product Specifications

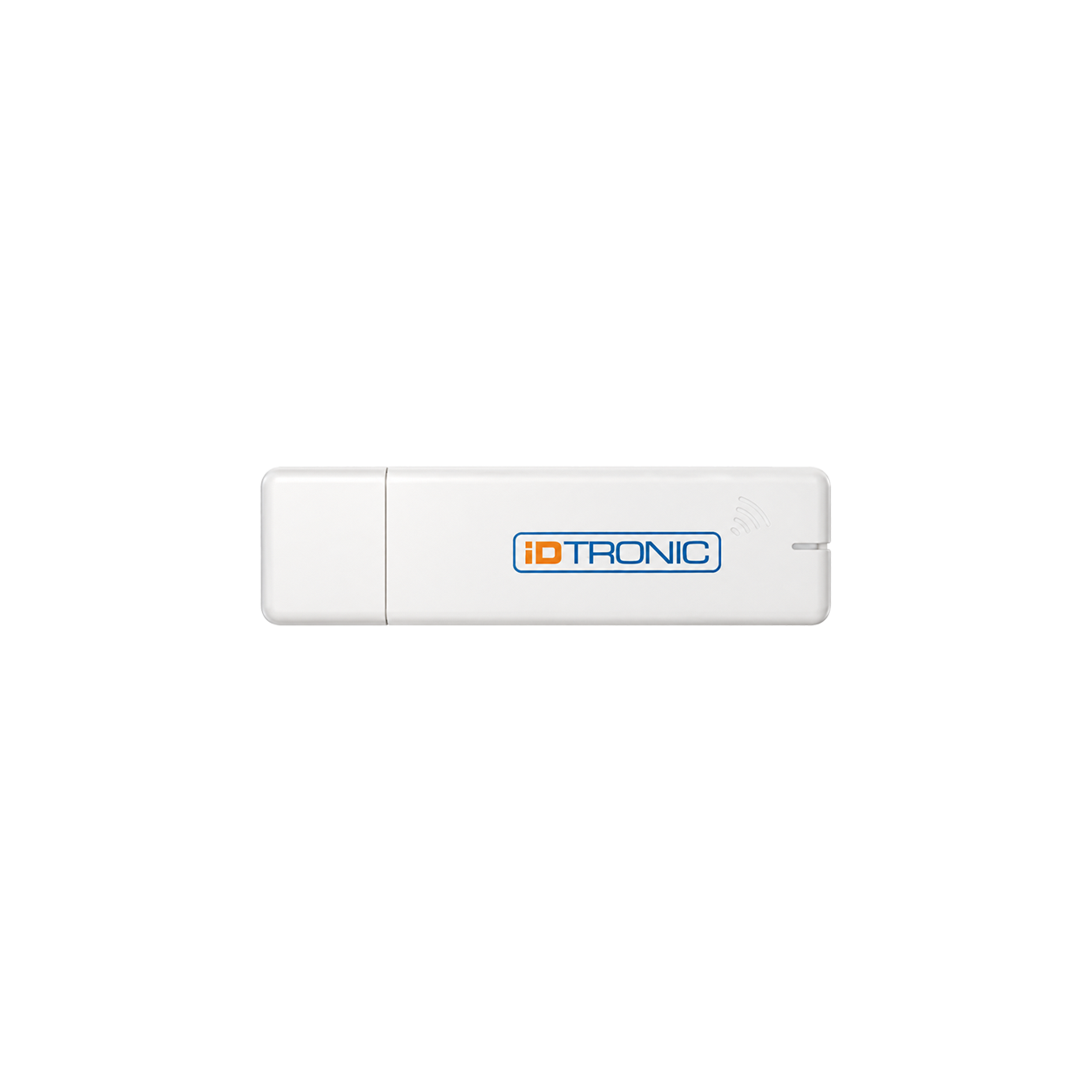

The RFID HF | NFC Stick Reader – EVO is a compact and lightweight plug-and-play USB reader for modern identification and authentication applications. With integrated HID and VCP mode as well as USB 2.0 interface the device can be flexibly integrated into various system environments and is ideal for current enterprise IoT applications.
The EVO supports common HF and NFC standards and reliably reads transponders such as cards and tags . Typical applications include E-commerce, Telecommunications, Postal services, Banks and Healthcare. Thanks to its lightweight and modern design, the reader is not only suitable for stationary applications but also ideal for mobile use .
ELECTRICAL SPECIFICATIONS
Power Supply USB VCP + HID
Power Consumption < 200 mA
Operating Frequency HF | NFC 13,56 MHz
Reading Range 3 cm
Standard UID Output HF ISO 14443A UID LSB
Antenna integrated
Status Indicator 1× Bi-Color LED, 1× Buzzer
