Short Ranges

RFline M30 UHF

The RFline Series UHF M30 Reader is the space-saving solution for industrial identification, tracking, and process support in demanding environments.

Request a Quote

Highlights

Your Benefits with the UHF M30

Compact M30 Housing

Ideal for production lines, conveyor systems, and vehicles with limited installation space.

Targeted UHF Capture

Reliable tag identification with read ranges of up to 50 cm.

Easy System Integration

Thanks to RS232 & M12 connectors, the reader can be easily integrated into existing systems.

Robust for Harsh Environments

Designed for reliable operation in industrial applications.

Ideal for Process Automation

Ensures stable operations in production and conveyor processes.

Also for Mobile Machines

A suitable solution for identifying tools and attachments on commercial vehicles.

Weitere Informationen

Specifications

Product Specifications

Description

Technical data
Downloads

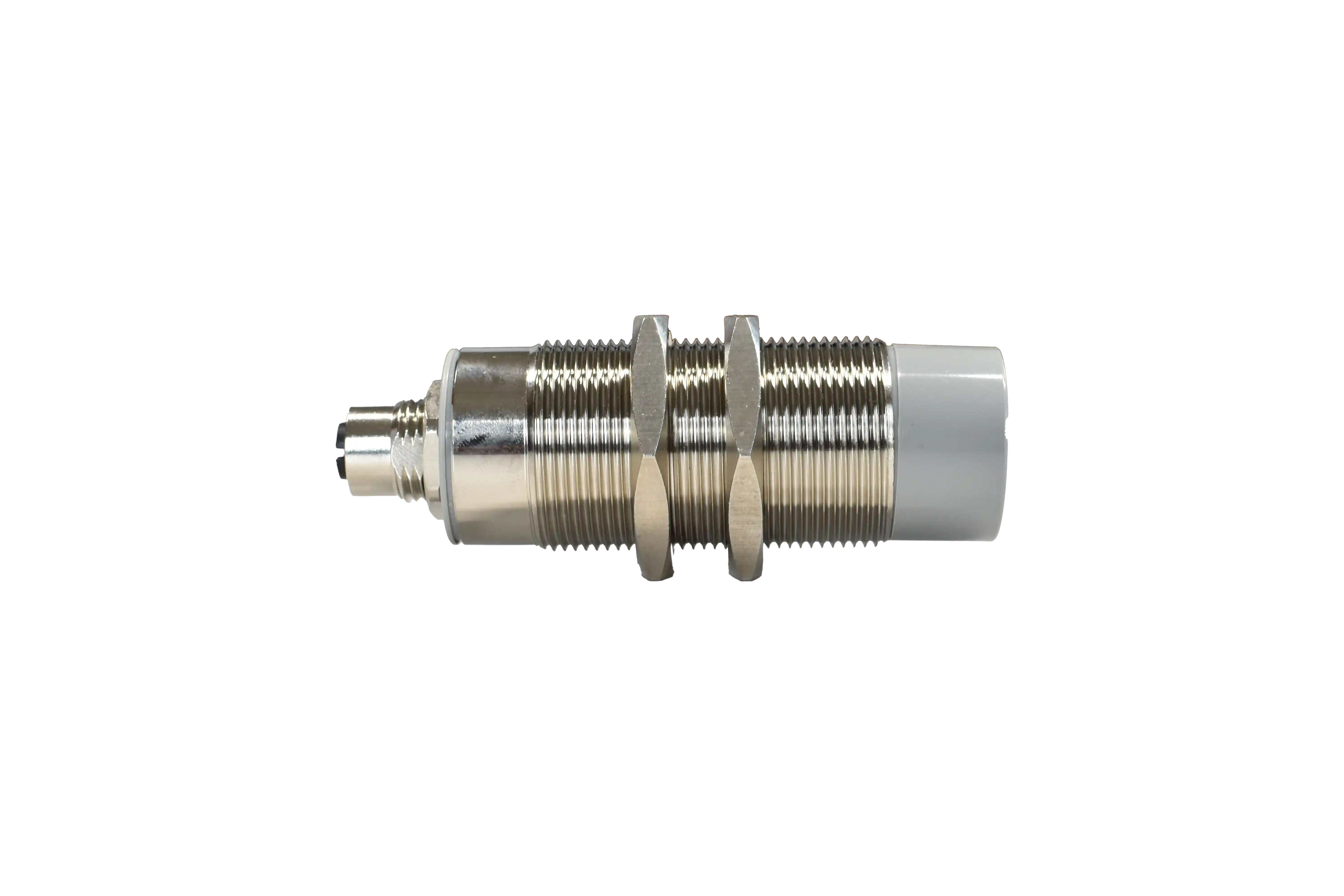

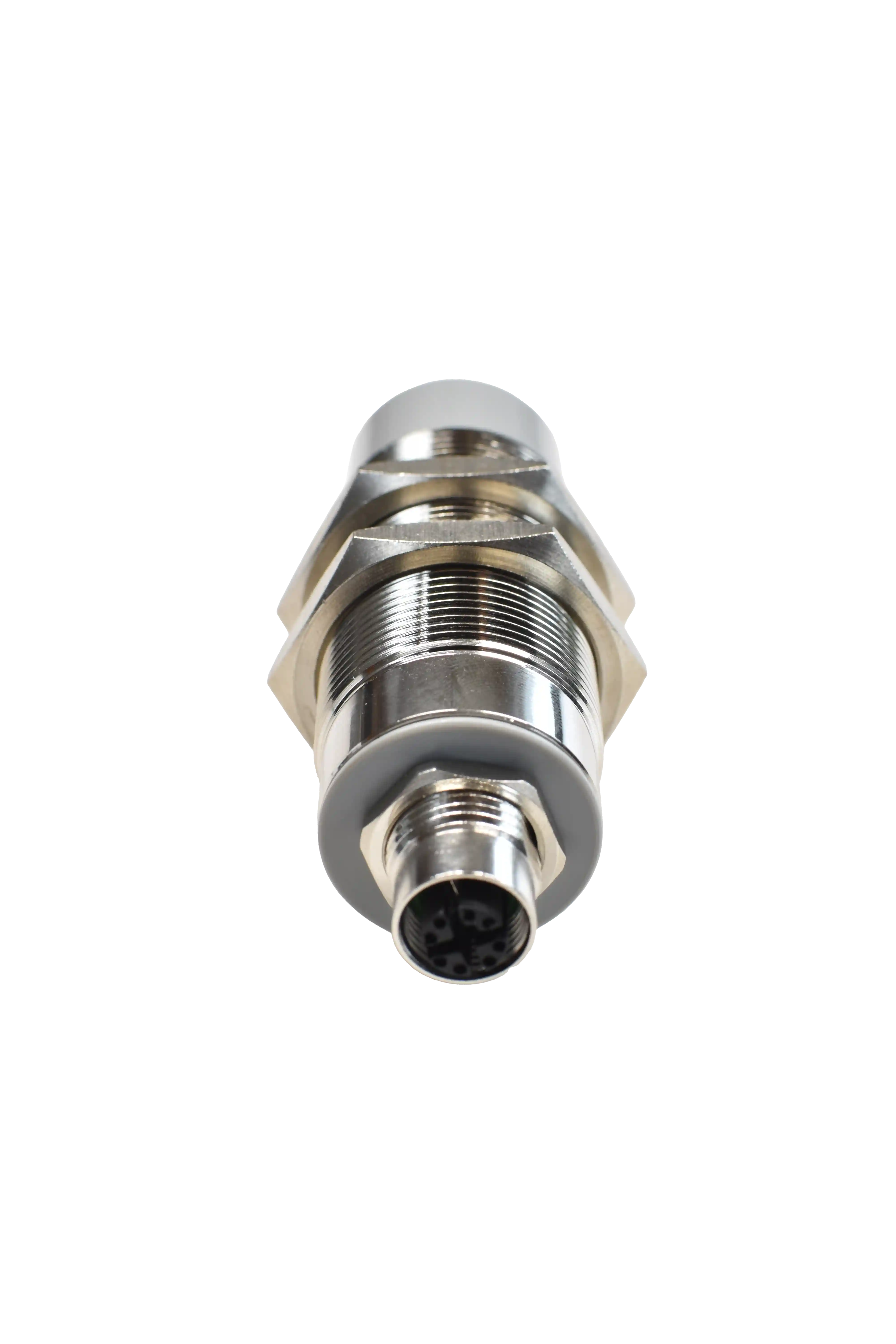

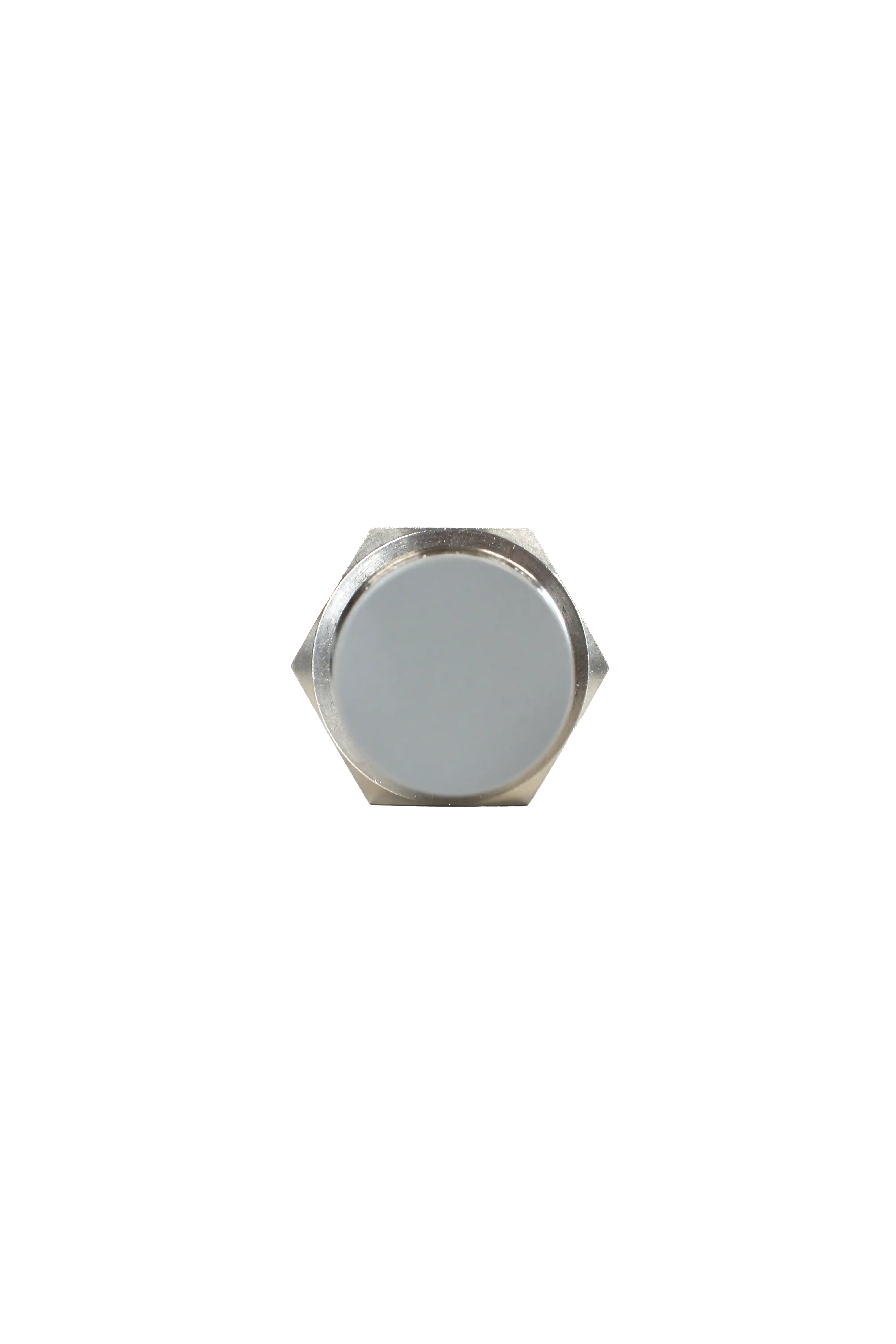

The RFline UHF M30 is a robust and compact all-in-one UHF RFID reader for industrial automation processes.

‍

With integrated omnidirectional antenna and read ranges of up to 50 cm the device is ideal for defined detection areas in production lines and conveyor systems.The easy-to-install cylindrical housing allows for space-saving integration even with limited installation space.

‍

Thanks to RS232 and standardized M12 connector the reader can be quickly and easily integrated into existing systems.Also for the identification of tools and attachments for construction, municipal, and agricultural vehicles, the RFline UHF M30 is a suitable solution.

ELECTRICAL SPECIFICATIONS

‍

Power Supply 10–24 V DC

‍

Power Consumption 4 W

‍

Operating Frequency UHF 865–868 MHz (ETSI)

‍

RF Output Power 30 dBm / 250 mW,
software-adjustable in 1-dB steps

‍

RF Input Sensitivity -82 to -51 dBm,
software-adjustable in 1-dB steps

‍

Antenna integrated

‍

Read range up to 50 cm

‍

Interface RS232

‍

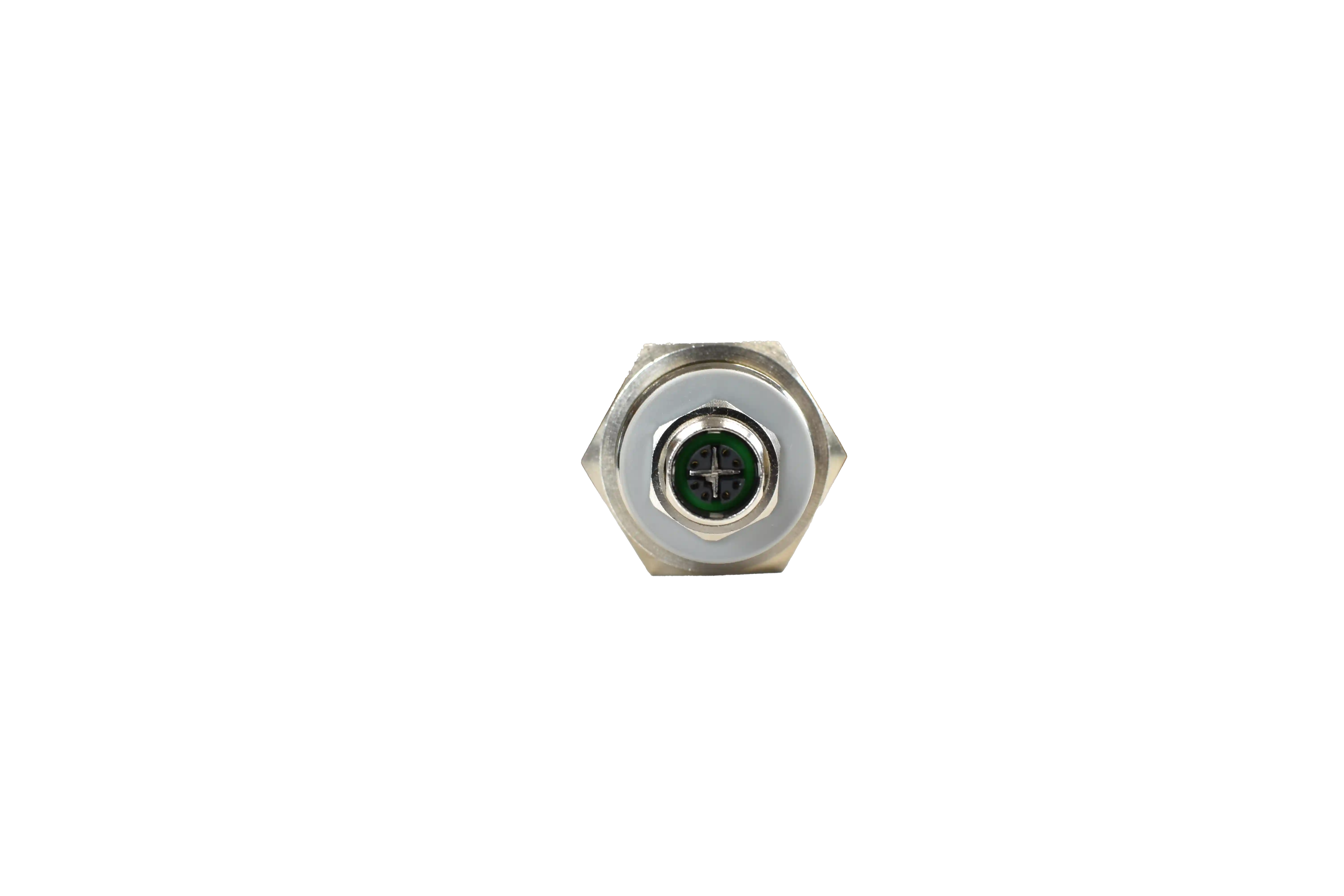

Connection M12 connector
