| Technical Specifications |
| Android Version |
Android 11 |
| Operating Voltage |
DC 9V – 24V (Typically 12V) |
| Power Consumption |
16W |
| Relay |
DC 30V / 1A |
| Storage |
8GB |
| Processor |
ARM Cortex A7 MP2 1GHz |
| Screen Size |
8″ Inch LCD touchscreen |
| Screen Resolution |
1280 x 800 |
| Touchscreen |
Capacitive touch |
| QR Module |
Integrated on the mainboard |
| Camera (RGB / Infrared) |
2 Megapixel camera |
| Reading Distance |
Cards: 0 – 5cm
QR Code: 0 – 10cm |
| Speaker |
Built-in 8 Ω 1W speaker |
| Interface |
RS485, Wiegand, Ethernet, Internal Relay, Magicline |
| Access Control Interface |
Exit switch input, Relay output |
| Face Recognition |
Facetronic Software & DSGVO Compliant |
| Protection Class |
IP66 |
| Frequenz |
13.56 MHz |
| Mechanical Specifications |
| Dimensions |
346.6 x 126 x 19.5 mm (H x W x D) |
| Material |
Window material: Glass |
| Housing |
Flame-retardant ABS |

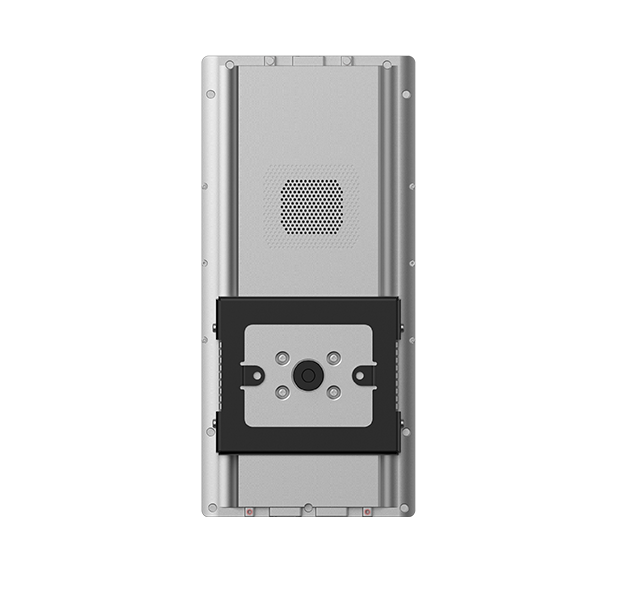

| Installation Methods |

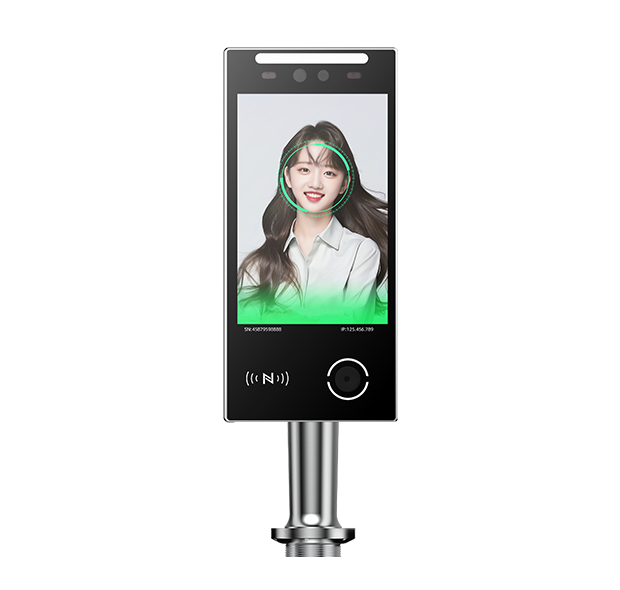

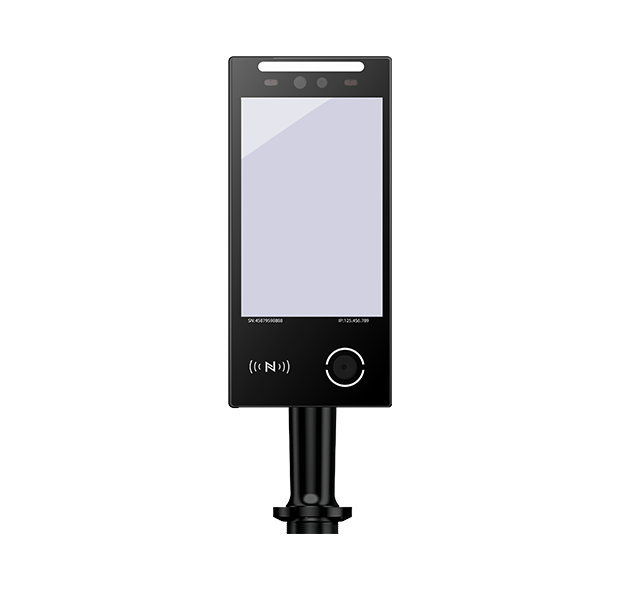

Pillar installation, 86 box mount |
| Environmental Specifications |
| Operating Temperature |
-20°C to 55°C |
| Storage Temperature |
-20°C to 55°C |
| Humidity |
5 to 95% |
| 1D/2D Specifications |
| Barcode Type |
1D:
UPC / EAN,
Code128,
Code 39,
Code11,
Codabar,
Code 2/5 interleaved,
MSI
2D:
QR Code,
PDF417,
Micro QR Code,
Aztec Code,
MaxiCode |
| Supported Standards / Tags | RFID HF | NFC 13.56 MHz |
| ISO 14443 A and compatible |
Read/write:
MIFARE® Classic/1K/4K,
MIFARE Ultralight®/C,
Fudan FM08,
NFC, NTAG 213, 215, 216, 196 |
| ISO 18000-3M3 |
I-Code ILT-M |
| NFC Peer to Peer |
App use via NFC possible |
