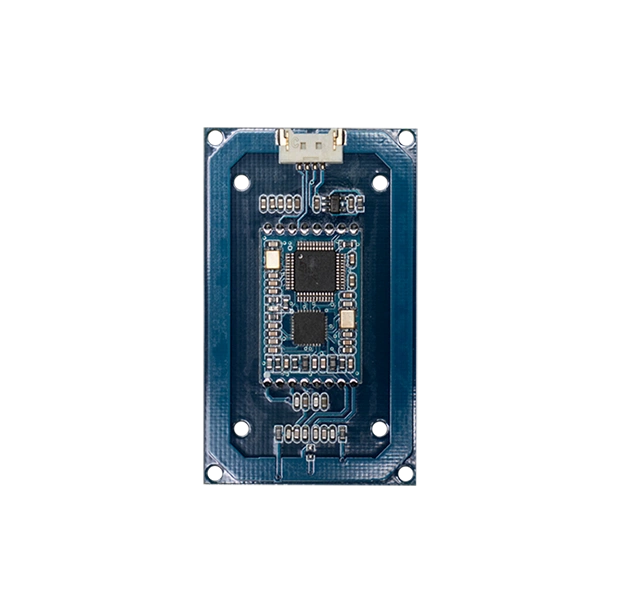

HF / NFC Embedded Reader – R835
Specifications
| Electrical Specifications | |
|---|---|
| Power Supply | 3.3 ~ 5 Vdc |
| Power Consumption | < 150 mA, standby current; < 1 mA (low power mode) |
| Operating Frequency | 13.56 MHz |
| Reading Distance | up to 8 cm* |
| Antenna | Integrated, nominal size: 55 × 30 mm |
| Baudrate | 9600…115200 bit/s, 115200 bits/s factory default |
| Interface | TTL (3.3 V output levels, input is not 5 V tolerant) RS485, USB, USB HID or PC/SC |
| Connector | Molex PanelMate (53780) (PCB) 51021 (cable) |
| Mechanical Specifications | |
| Dimensions | 58 × 34.5 × 4.5 mm |
| Material | FR-4, Blue |
| Weight | 8 g |
| Mounting Option | Screwing |
| Environmental Conditions | |
| Operating Temperature | -20 °C to +80 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5 % to 95 %, non-condensing |
| MTBF | 200’000 h |
| Supported Standards / Tags | |
| ISO 14443A and compatible | Read/write: MIFARE® Classic Mini / 1K /4K, MIFARE Ultralight®, Read UID only: MIFARE® DESFire, MIFARE® Pro X, MIFARE® Plus S / X, read UID only of all other ISO14443A RFID tags |
| ISO 14443B and compatible | SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
| ISO 15693 and compatible | EM4135, EM4043, EM4x33, EM4x35, I-Code SLI/SLIX/DNA, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
| ISO 7816 | PSAM T=1 |
| ISO 18000-3M3 and compatible | I-Code ILT-M |
| SDK Information | |
Supported OS | Windows 7, 8, 8.1, 10 |
| Supported Languages | C++, Binary command protocol |
| Demo Software | Windows |
| Applicable Standards | |
| EMC | EN 301489-1:2012-04 (v1.9.21), EN 301489-3:2013-12 (V1.6.1) |
| Radio Regulation | EN 300330-1:2015-08 (V1.8.1), EN 300330-2:2015-08 (V1.6.1) |
| Safety | EN 60950-1:2014-08, EN 62369-1:2010-03, EN 50364:2010-11 |
| RED | 2014/53/EU |
| RoHS 2 | EC Guideline 2011/65/EU and amendment 2015/863 EN 50581:2012 (valid till 2024-07-07) EN 63000:2018 |
| REACH | EU Guideline 1907/2006, updated by 2020/171/EU |
| Certificates | FCC, CE, IC*** |
*Reading Distance depends on Tag, Antenna and Environmental Conditions.
***Only available for some Versions.
Description
The RFID HF | NFC Embedded Reader – R835 is a complete OEM RFID reader and writer, which is compatible with Windows, Linux and Android devices.
Thanks to an integrated antenna it can be used efficiently in many applications.
Its integrated antenna transmits data at a speed of up to 115,200 bits per second.
The RFID HF | NFC Embedded Reader – R835 is small and compact held in the dimensions 3.45 × 5.8 × 0.45 cm.
Its serial-based interfaces, TTL and RS485, allows an easy and fast integration into existing electronics or a fast-paced new development of high-end identification applications. In addition, the USB und USB HID versions are available with a PC/SC interface for payment solutions.
RFID HF | NFC Embedded Reader – R835 is suitable for many applications within the medical area, in vending machines or EV chargers for payment processing or also in the context of access management.
Different versions are available: DESFire, PSAM, Multi-Protocol & MIFARE
The RFID HF | NFC Embedded Reader – R835 series supports the standards ISO 14443 A/B, ISO 15693 as well as a variety of NXP MIFARE® tags.
Application areas
- Access Control
- EV Chargers
- Mobile Computers
- Medical Devices
- Vending Machines
- Laboratory Diagnostics
