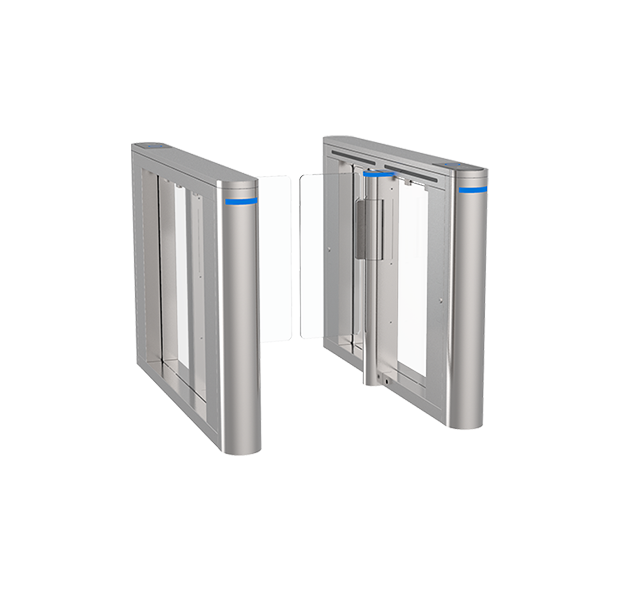

ID GATE 8800
Specifications
| Specifications | |
|---|---|
| Dimensions | 1500 x 150 x 980mm |
| Pass Width | 600 – 900mm |
| Material | Top δ =1.5mm Body δ =1.2mm |
| Bar Material | δ=10mm Acrylic Arm |
| Movement | Brushless Speed Gate movement |
| Power Supply | 100-240 W |
| Operational Voltage | 24V |
| Drive Unit | Brushless DC 60K 40W |
| Pass Rate | 35 – 50 People per Minute |
| Sensor | 6 pairs |
| Indicator Light | Dynamic indicator light |
| Communication Mode | Dry contact & RS485 |
| Controls | Brushless control system (Optional Servo Brushless system) |
| Temperature | -25°C ~ +70°C |
| Humidity | ≤90% No condensation |
| IP | >IP65 |
| Environment | Indoor |
Description
The Speed Gate ID GATE 8800 is a versatile access control solution that can be used in a variety of applications. In gyms, spas and health centers, the ID GATE 8800 can be used to restrict access and increase security.
Thanks to its innovative technology, ID GATE 8800 provides fast processing and control of access to protected areas. Thus, it creates a safe environment for visitors and authorized persons.
