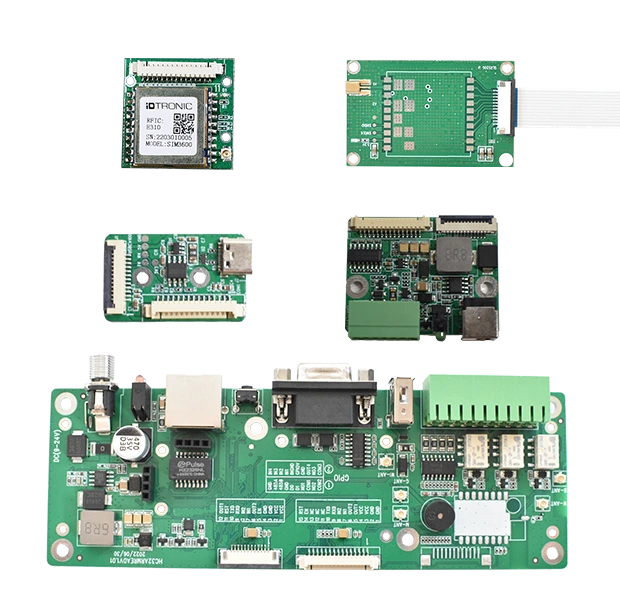

Embedded UHF Interface Boards
B50 / B60 / B100 / B200 / B900

Highlights
Spezifikationen
General Specifications B100 | |
---|---|
Description | Embedded UHF interface Board B100 |
Dimensions | 35 × 22 × 4.6 mm |
Weight | 3.6 g |
General Specifications B200 | |
Description | Embedded UHF interface Board B200 |
Dimensions | 35 × 45 × 11.6 mm |
Weight | 14 g |
General Specifications B900 | |
Description | Embedded UHF interface Board B900 |
Dimensions | 160 × 64 × 19.2 mm |
Weight | 79.8 g |
Electrical Specifications B100 | |
Power Supply | USB Type-C 5V |
Power Consumption | 0.5W during operation of the single board |
Communication Interface | USB (9600 – 921600 bps) |
Connectors | 12-Pin FPC and 15-Pin Ribbon |
GPIO | – |
Indicator LEDs | – |
Electrical Specifications B200 | |
Power Supply | 9-24V with standard adapter (12V/3A) |
Power Consumption | 0.5W during operation of the single board |
Communication Interface | RS232 (9600 – 460800 bps) |
Connectors | 12-Pin FPC and 15-Pin Ribbon |
GPIO | 1 input, 1 strong driver output (each pull-up current can reach 250mA) |
Indicator LEDs | Power indicator (green) |
Electrical Specifications B900 | |
Power Supply | 9-24V with standard adapter (12V/3A) POE power supply (compatible with 802.3af or 802.3at standard) |
Power Consumption | POE power supply capacity: Using a 100-meter ultra-five-category network cable, different types of POE switches have deviations. |
Communication Interface | 10M/100M adaptive Ethernet, RS232 (9600 – 230400 bps), USB (9600 – 921600 bps) |
Connectors | 12-Pin FPC and 15-Pin Ribbon |
GPIO | 4 input, 4 strong driver output (each pull-up current can reach 250mA) |
Indicator LEDs | Power indicator (green), Status indicator (red) |
SDK Information | |
Supported OS | Windows, Linux, Android |
Supported Languages | C, C#/.NET, Java |
Demo Software | Windows |
Beschreibung
Die iDTRONIC EMBEDDED UHF INTERFACE BOARDS sind für einfache Tests von RF-Modulen und den Aufbau kompletter Maschinen konzipiert. Die Produktserie verfügt über ein industrietaugliches Design. Eine Vielzahl von Modulen wie M500, M600, M620, M630, M650, M670 und M690 kann direkt an das Board angeschlossen werden.
Standard-Kommunikationsschnittstellen wie USB Type-C, RS232 und TCP/IP sind vorhanden. Diese Boards eignen sich hervorragend zur Bewertung der Leistung von RF-Modulen und können mit einem Gehäuse kombiniert werden, um einen festen Reader mit kompakter Bauweise, einfacher Installation und stabiler Leistung zu realisieren – ideal für verschiedene industrielle Anwendungen.
Die Interface-Boards erleichtern außerdem das Testen von GPIO-Funktionen, Reset, Power-On-Control usw. Die B100 wird über USB mit Strom versorgt, während B200 und B900 mit 9–24 V betrieben werden. (POE zusätzlich nur für B900 (802.3at/af)).
Mit diesen Boards können iDTRONIC-Kunden die Leistung der RF-Module schnell evaluieren und auf Basis von Open-Source-Informationen eigene Produkte entwickeln.
Anwendungsgebiete
- RFID UHF Modulprüfung
- Elektronikentwicklung
- Produktion / Fertigung
